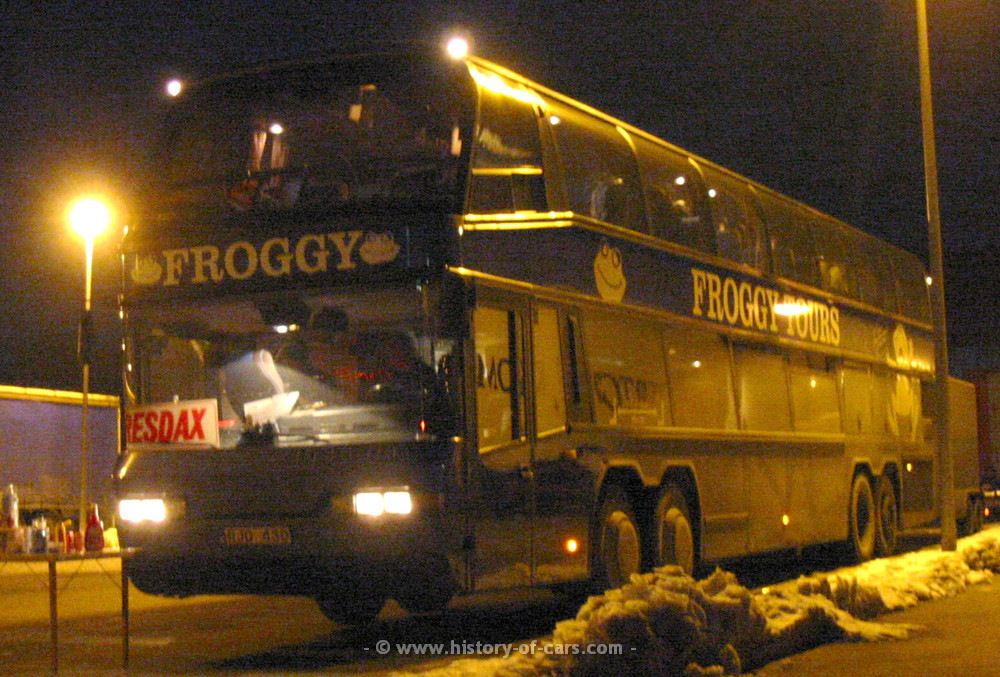

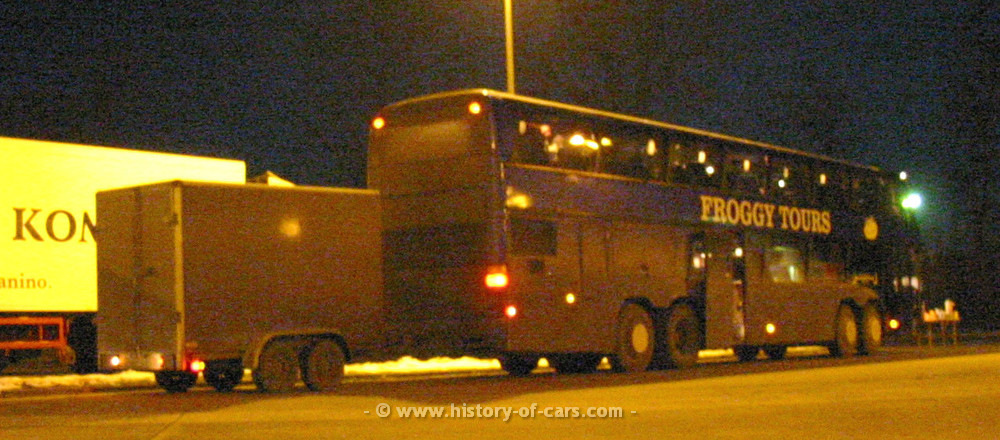

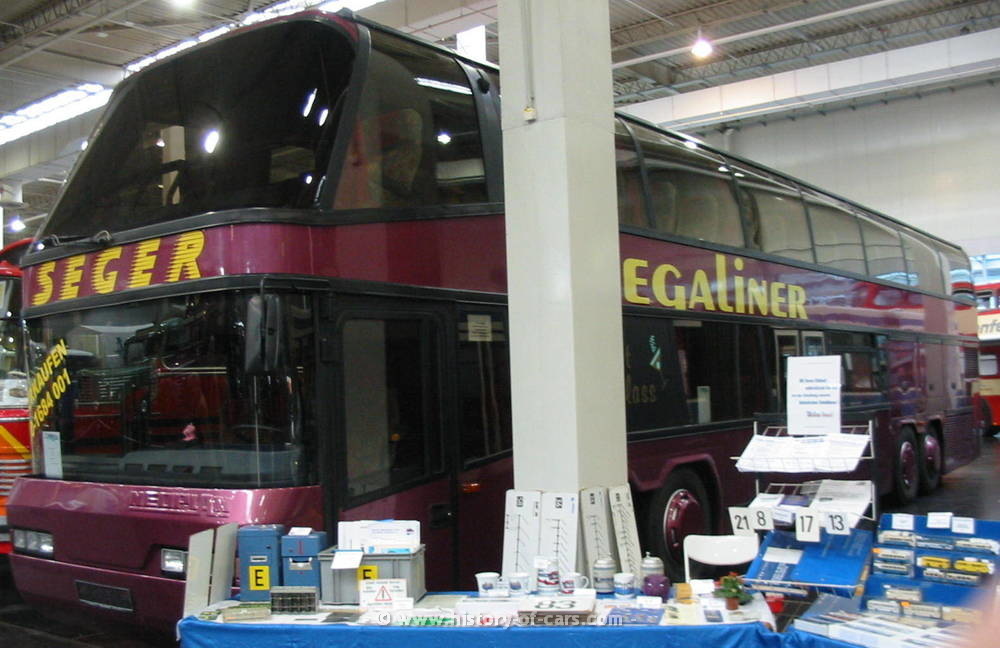

Neoplan N128/4 Megaliner
Fahrzeugtyp:
Reisebus
Baujahr Fahrzeug:
1991-2000
Baujahr Modellreihe:
1991-2000
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
Mercedes OM 442 LA
91-00:
V8/16V
?:1
128.0 x 142.0 mm
14618 cm³
503PS
@1900/min
34.4 PS/l
TDDI
2020 Nm
@1100/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
14.6l | 503PS:
? kmh
? l/100km
9.0 m/s
16.0 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
295/80 R22.5
Getriebe/Antrieb:
? Vorwärts, ? Rückwärts / 8x2x6
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
15000 mm x 2500 mm x 4000 mm // 3065/3305 mm
Radstände - Spur v/m/h:
1230 / 6100 / 1300 mm - 2080/2080/1828/1828 mm
Einige Berechnungen:
Grundfläche: ca. 37.50 m² - Stirnfläche: ca. 8.25 m² - LxBxH: ca. 150.00 m³
Gewichte leer/zGG/zZGG:
? kg / 30000 kg / ? kg
max. Achslasten tech./zul.:
1.: ?/7100 kg 2.: ?/7100 kg 3.: ?/11500 kg 4.: ?/6500 kg
Leistungsgew. leer/zGG/zZGG:
? / 59.6 / ? kg/PS // ? / 16.8 / ? PS/Tonne
Wendekreis:
24.8 m
Sitzplätze/Stehplätze:
91/0
Geschichte
Ãœber dieses Modell:
Es waren optional auch schwächere Motoren erhältlich.
